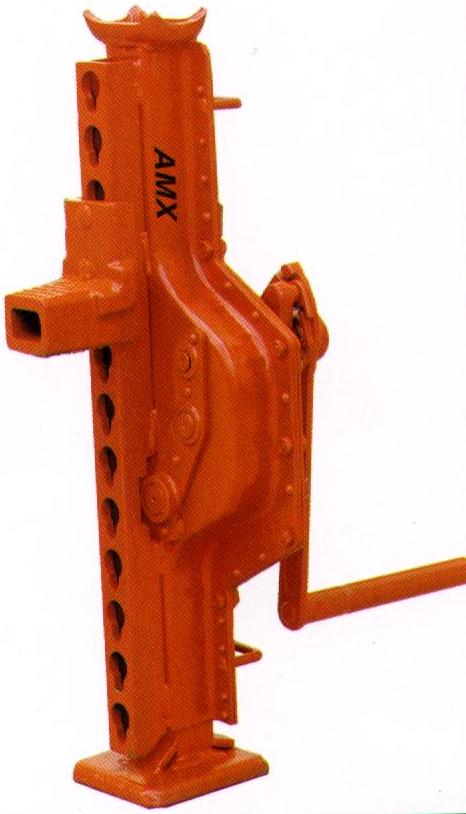

AMX STEEL JACK



AMX steel jacks SJ and SJL are devloped in accordance with the latest safety regulations.with milled racks, geared wheels and tempered parts of driving gear.
  • In accordance with DIN 7355(type SJ).
  • With lifting body.
  • Safety crank with folding handle.
  • Type SJA comes with low body height.
  • Type SJA comes with low body height.
  • Lifting either with fixed toe or on clawed head.
  • All construction components standardized
  • Low expenditure of force through optimal ratio.
Model State

Working

Load(kg)

 Height

of jack

Body (mm)

 Lifting

Height

(mm)

 Height of claw in

lowest position(mm)

 Net Weight

(kg)
SJ-1.5 1500 725 350 70 12
SJ-3 3000 725 350 75 20
SJ-5 5000 725 300 70 24
SJ-10 10000 800 300 90 42
SJ-15 15000 800 340 95 58
SJ-20 20000 800 340 95 63
SJL-1.5 1500 570 300 70 11
SJL-3 3000 570 300 75 18
SJL-5 5000 600 300 70 22
SJL-10 10000 650 300 80 38





STEEL JACK
With adjustable lifting claw
  • Suitable for lifting loads of any type
  • For a varity of lifting points
  • low exoenditure of force through optimal ratio .
  • Lifting claw adjustable in 6 position.
  • Lift completly usable
  • Large base plate.
Model Safe Working Load (kg) Height of Jack Body (mm) Lifting Height

(mm)

 Height of claw in lowest position(mm) Net weight(kg)
SJA-3 3000 720 350 69 25
SJA-5 5000 720 300 64 30
SJA-10 10000 792 300 85 48
Adjustable height of the lifting claws:
Capacity   Position6 position5 position4 Position3 Position2 Position1
3ton (mm) 554 457 360 263 166 69
5ton (mm) 549 452 355 258 161 64
10ton (mm) 615 509 403 297 191 85
